Tower Sliders

TAPSL160

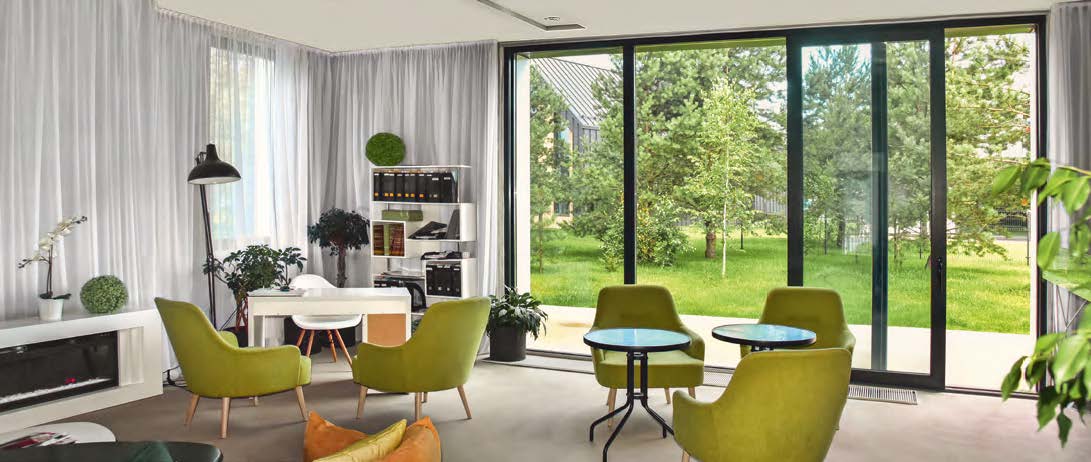

TAPSL160 Lift and slide system is a modern option for glazing of large openings in premium buildings. Leaf does not occupy the inner space, releases large opening and allows to combine several rooms or a room with a terrace.

TAPSL160 System provides architects and designers with great opportunities for large openings—wall replacement by thermally insulated lift and slide doors, high anti-burglary features, improved illumination and significant economy of the useful area.

Tower Architectural Products Sliding Doors

Configuration | Features | Colours & Finishes | Specification

Configuration

Single Track

Two Track

Three Track

One, Two & Three Track Systems

Features

Maximum illumination – additional room space

The height of the leafs can be up to 3385mm, with a maximum width of 3235mm, door system width with connection elements is increased up to 19500mm.
Security

The system is equipped with burglar resistant elements and there is an opportunity to use burglar resistant hardware. This ALT SL160 system is certified to PAS24 class in the UK.

High Thermal Properties

Due to the use of large polyamide thermal breaks and the possibility of double glazed units installation up to 54 mm, the thermal properties of the structure are significantly increased.
Anti Bi-Metal polyamide thermal breaks

The use of 32 mm wide Anti Bi-Metal polyamide thermal breaks in sash profiles eliminates the possibility of jamming, corners opening, blowing and frost penetration.

Colours & Finishes

The Tower Slider System TAPSL160 is available in any RAL colour of your choosing, although custom colours are not held in stock and are subject to slightly longer lead times. The TAPSL160 range is available in gloss and matt finishes.

Specification & Performance

Dimensions

Maximum Leaf height	3385mm
Maximum Leaf Width	3235mm
Infill Unit Thickness	54mm
Maximum Infill Unit Weight	440Kg

Performance

Water tightness	class Е900 (900 Pa) EN 1027:2000, EN 12208:1999
Air tightness	class 4 (600 Pa) EN 1026:2000, EN 12207:1999
Wind load resistance	class С5 (2000 Pa) EN 12211:2000, EN 12210:1999
Thermal insulation	Uf ≥ 1.3 W / m2∙KEN ISO 10077-1:2007, EN ISO 10077-2:2012*
Impact resistance	class 5 EN 13049:2003
Acoustic performance	43 dB EN ISO 10140-2:2011, EN ISO 10140-4:2011
Burglar resistance	PAS 24:2016 (class D)

* depends on infill unit type
